Omega J1065 Jaw Crusher

Product ID: J1065


Engineered to deliver, with high productivity and low operating cost, Omega jaw crushers have been proven working in some of the most demanding hard rock applications.

Using the highest quality components.

Omega Quarry Crusher

Wheel Mounted Jaw Crusher

All Electric Drive (Zero Emissions)

User-Friendly

Robust Design and Structure

New British Design

Plug and Crush

Lorem Ipsum

1. Feed Hopper

  • 3.8 cubic metre hopper. Which can be filled by excavator or wheeled loader
  • 960mm opening into jaw crusher
  • Fitted with side support legs

2. Vibrating Feeder

  • 800mm wide vibrating feeder
  • Feeder floor has a 5-degree angle to help in material flow
  • Automatic stop start as crusher fills
  • Operator remote control on/off
  • Always on electric drive motors, for higher efficiency

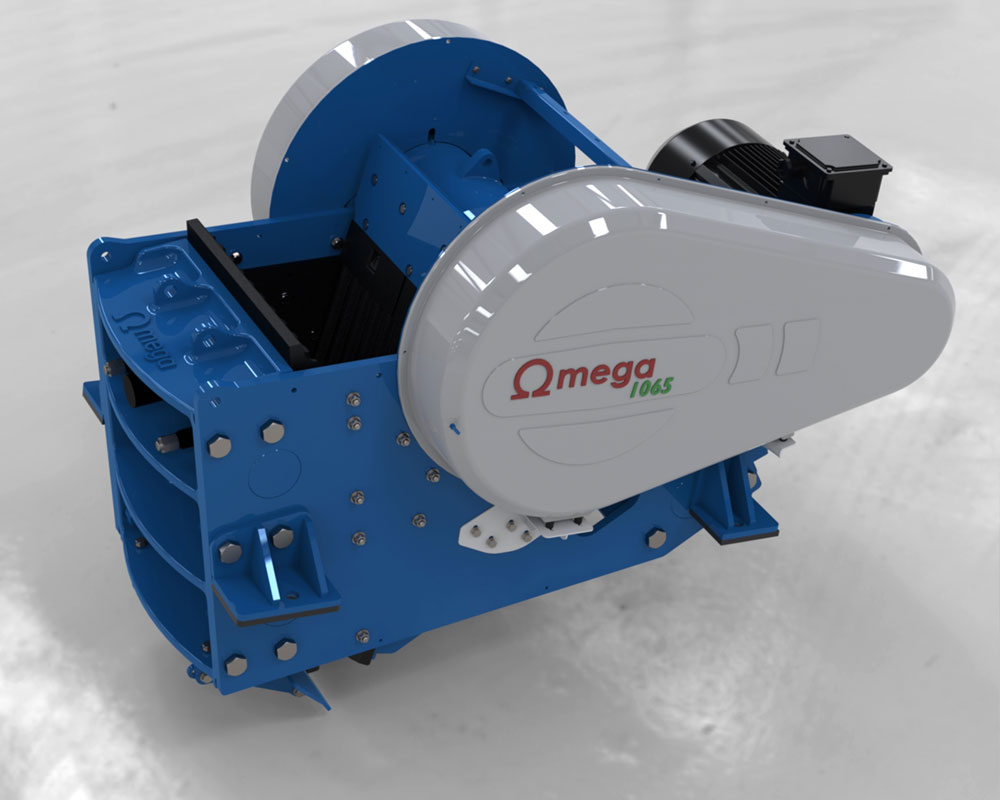

3. Crusher Box

  • Single toggle
  • Size: 960mm x 600mm
  • Speed 280 rpm
  • Drive Electric 90kw
  • Adjustable with tie back rod
    and spring
  • Crusher can be run in both forward and in reverse

4. Main Discharge Conveyor

  • Single toggle
  • Size: 960mm x 600mm
  • Speed 280 rpm
  • Drive Electric 90kw
  • Adjustable with tie back rod
    and spring
  • Crusher can be run in both forward and in reverse

5. Side Discharge Conveyor

  • 700mm wide belt
  • 2000mm discharge height for large stockpiles of natural fines
  • Hydraulic folding for ease of transport
  • Electric drive motor
  • Self-cleaning spoke tail drum

6. Twin axles for ease of movement, the axles are on spring suspension

7. Hydraulic jacking legs both front and rear for ease of setupĀ

8. Truck mounting point (5th wheel pin)

Lorem Ipsum

Jaw Crusher

  • Semi hydraulic Jaw Adjust
  • High Capacity 960 x 600mm opening
  • Reverse crushing capability

Discharge Conveyor

  • 1000mm wide
  • 3000mm discharge height
  • Low maintenance design

Feeder/Hopper

  • 3.8 cube
  • 800mm wide
  • Hardox lined
  • Declined feeder floor to assist
  • Material flow
  • Wireless Radio control

Hydraulic Stabilisation Legs

Machine weight 28,000kg

Required Power 400v 3Phase

*Details may change on final Specification
